TransGo 42RLE-VLP SHIFT KIT® Valve Body Repair Kit
Fits 2006 and newer Chrysler, Dodge, Ram, and Jeep vehicles equipped with A604, 40TES, 41TES, 41TE, and 42RLE transmissions with variable line pressure (VLP) solenoid and sensor.
For models without the VLP solenoid and sensor, use kit #SK 604. Common issues with this transmission include TCC slip or shudder, code P0740, overheating, delayed engagement in forward or reverse, and clunks during 4-3 or 2-1 coast downshifts.
Valve Body-Related Issues:
Problems like TCC slip or shudder, code P0740, and overheating are often caused by wear in the pressure regulator valve and TCC regulator valve bores. The kit includes USA-made drop-in pressure regulator and TCC regulator valves with extended lands, which fix these issues without the need for reaming or machining.
Internally-Generated Issues:
The 4-3 coast clunk is typically due to a malfunctioning underdrive clutch inner piston seal. The kit provides a specially designed tuff seal and expander wire to resolve this issue. Delayed engagement in forward or reverse and the 2-1 coast downshift clunk are often caused by aging, specifically when the low-reverse piston housing gasket shrinks and starts leaking. TransGo has developed a special gasket made from a non-shrinking material to address this.
Features and Benefits:
-
Drop-in Installation: Includes hardened steel pressure regulator and redesigned TCC regulator valves for quick, hassle-free installation.
-
Extended Lands: The longer lands on both valves restore hydraulic integrity by using previously unworn areas of the bore, and also enhance bore longevity by distributing the load over a larger surface area.
-
Enhanced Seals: Includes a non-shrinking low/reverse piston housing gasket, high-temperature accumulator piston seals, and expanders for aluminum pistons, as well as a tuff seal for the underdrive clutch piston.
-
Improved Shifts: Accumulator spacers are included to make clutch exhaust faster, resulting in shorter, cleaner shifts.
Corrects/Prevents/Reduces:
- TCC slip or shudder
- Code P0740
- Overheating
- Delayed or no forward/reverse due to converter drain-back
- 4-3 or 2-1 coast downshift clunks

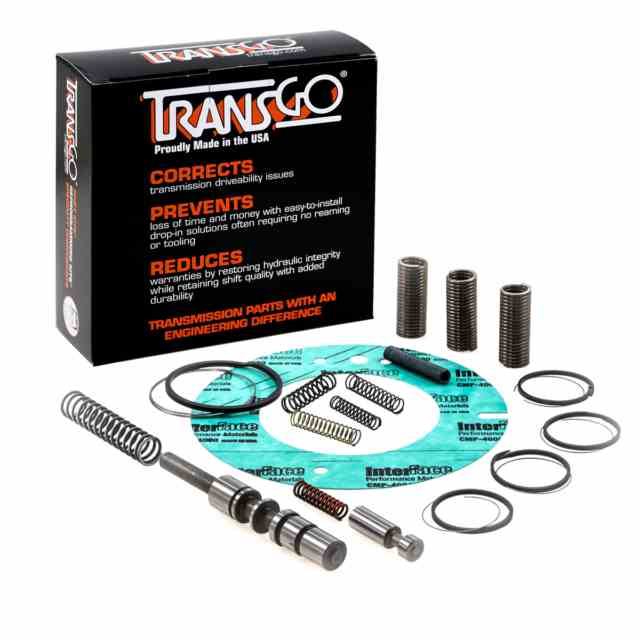

Includes:
- Non-shrinking low/reverse piston housing gasket
- (4) High-temperature accumulator seals and expanders (for aluminum accumulator pistons only)
- (3) Large accumulator spacers
- Small accumulator spacer
- (2) TCC control accumulator springs
- (2) TCC control valve springs
- Drop-in USA-made hardened steel PR valve and calibration spring
- Drop-in USA-made hardened steel TC regulator valve and calibration spring
- Self-expanding Tuff™ underdrive seal and expander wire
Notes:
High-mileage vehicles may sometimes exhibit codes P0841, P0871, P0988, P1775, and P1776 due to wear at the solenoid switch valve bore in the valve body.
Transmissions: 41TE 2006-2016, 42RLE 2006-2016, A604-VLP 2006-2016
Vehicle
CHRYSLER
200 2006-2014 4 SP FWD L4 2.4L V6 2.7L
CIRRUS 1995-2000 4 SP FWD L4 2.4L V6 2.5L
LEBARON 1995 4 SP FWD V6 3.0L
PACIFICA 2004-2007 4 SP F/4WD V6 3.5L 3.8L
PT CRUISER 2001-2009 4 SP FWD L4 2.0L 2.4L
SEBRING 2000-2010 4 SP FWD L4 2.4L 2.5L V6 2.7L 3.0L
SEBRING CONVERTIBLE 2000-2010 4 SP FWD L4 2.4L 2.5L V6 2.7L 3.0L
TOWN & COUNTRY 1995-2016 4 SP F/4WD V6 3.3L 3.8L
VOYAGER 2001-2011 4 SP FWD L4 2.4L 2.8L V6 3.0L 3.3L 3.8L
300 SERIES 2004-2010 4 SP RWD V6 2.7L 3.5L
DODGE
AVENGER 1995-2000 4 SP FWD L4 2.0L V6 2.5L
AVENGER 2007-2014 4 SP FWD L4 2.4L V6 2.7L
CARAVAN 1995-2016 4 SP F/4WD L4 2.4L V6 3.0L 3.3L 3.8L
GRAND CARAVAN 1995-2011 4 SP F/4WD L4 2.4L V6 3.0L 3.3L 3.8L
NEON 2001-2006 4 SP FWD L4 2.0L
STRATUS 1995-2006 4 SP FWD L4 2.0L 2.4L
CHALLENGER 2008-2014 4 SP RWD V6 3.5L
CHARGER 2005-2010 4 SP RWD V6 2.7L 3.5L
DURANGO, MAGNUM 2004-2008 4 SP R/4WD V6 3.7L
NITRO 2007-2011 4 SP R/4WD V6 3.7L
PICKUP/DAKOTA 2003-2011 4 SP R/4WD V6 3.7L
Alternate Words: Automatic Transmission, Reprogramming, Improvement , Correction, Shift , Valve Body Rebuild Kit, SK 42RLE-VLP
