Transgo Boost Valve and Bushing Steel Replacement Kit .500" 4L60E 4L65E 4L70E 4L75E

• Enhances pressure rise response for demanding applications
• Replaces both early 1.910" (long) and late 1.810" (short) bushings and valves

• Reduces 3-4 clutch failure
• Prevents band failure
• Minimizes low reverse clutch slippage

Note: For transmissions built up to March 2005, this kit can be installed without removing the transmission. However, after March 2005, General Motors gradually introduced an input speed sensor to this transmission, which obstructs access to the boost valve assembly. In these cases, transmission removal is required for installation.

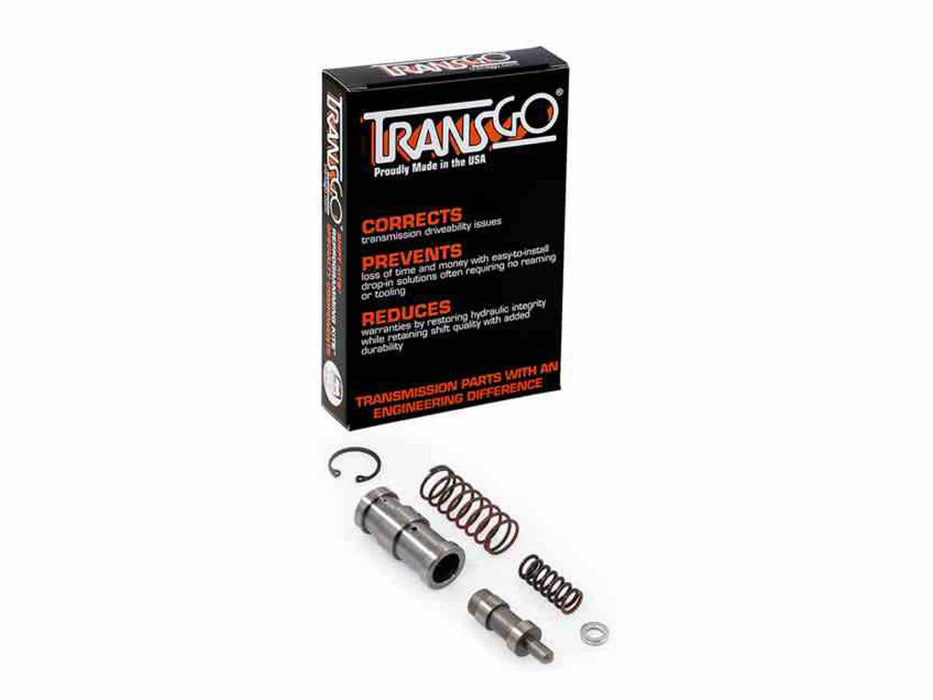

• USA-made hardened steel boost valve and bushing
• Spacer
• (2) Springs
• Snap ring

Transmissions: 4L75E 2004-UP, 4L70E (M70) 2004-UP, 4L60E (M33,M30) 1993-UP, 4L65E (M32) 1993-UP

BUICK
RAINIER 2003-2007 4 SP R/4WD L6 4.2L V8 5.3L
ROADMASTER SEDAN, ROADMASTER WAGON 1995-1996 4 SP RWD V8 5.7L
CADILLAC
ESCALADE/ESV/EXT 1999-2006 4 SP R/4WD V8 5.3L 5.7L 6.0L
FLEETWOOD, BROUGHAM, LIMO 1995-1996 4 SP RWD V8 5.7L
CHEVROLET
SILVERADO 1998-2013 4 SP R/4WD V6 4.3L V8 4.8L 5.3L V8 6.0L
SUBURBAN 1500 1995-2008 4 SP R/4WD V8 4.8L 5.0L 5.3L 5.7L V8 6.0L
ENVOY, TRAILBLAZER 1999-2009 4 SP R/4WD L6 4.2L V8 5.3L V8 6.0L
ASTRO, BLAZER, CORVETTE, SONOMA, S/T PICK-UP, SAFARI, CORVETTE 1995-2005 4 SP R/4WD V6 4.3L
AVALANCHE 2001-2008 4 SP R/4WD V8 5.3L 6.0L 8.1L
C/K, PICK-UP 1500, C/K, PICK-UP 2500, C/K, PICK-UP 3500(95) 1995-1997 4 SP R/4WD V6 4.3L V8 4.8L 5.0L 5.3L 5.7L 6.0L
C-1500 2001-2015 4 SP 4WD V8 5.3L
CAMARO 1995-2002 4 SP RWD V6 3.4L 3.8L V8 5.7L
CANYON 2003-2013 4 SP R/4WD L4 2.8L 2.9L V6 3.5L L5 3.7L V8 5.3L
CAPRICE SEDAN, CAPRICE WAGON, IMPALA 1995-1996 4 SP RWD V8 4.3L 5.7L
COLORADO 2003-2012 4 SP R/4WD L4 2.8L 2.9L L5 3.5L 3.7L V6 3.6L V8 5.3L
EXPRESS 1997-2016 4 SP R/4WD V6 4.3L V8 5.3L
TAHOE 1995-2013 4 SP R/4WD V8 4.8L 5.3L 5.7L
VAN FULL SIZE 1500-2500 1995-2011 4 SP RWD V6 4.3L V8 4.8L 5.0L 5.3L 5.7L 6.5L DIESEL
VAN FULL SIZE 3500 1995-1999 4 SP RWD V6 4.3L
SSR 2003-2006 4 SP RWD V8 5.3L 6.0L
GMC
SIERRA 1500 1998-2013 4 SP R/4WD V6 4.3L V8 4.8L 5.3L V8 6.0L
SAVANA 1997-2016 4 SP R/4WD V6 4.3L V8 4.8L 5.3L
YUKON , YUKON XL 2000-2011 4 SP R/4WD V8 4.8L 5.3L 6.0L
HOLDEN
ADVENTRA 2004-2007 4 SP 4WD V8 5.7L
COMMODORE 2000-2011 4 SP RWD V6 3.6L 3.8L V8 5.7L
MONARO 2001-2006 4 SP RWD V8 5.7L
ISUZU
ASCENDER 2003-2008 4 SP R/4WD L6 4.2L V8 5.3L
HOMBRE 1997-2000 4 SP RWD L4 2.2L V6 4.3L
I SERIES (290, 370) 2006-2008 4 SP R/4WD L4 2.8L 2.9L L5 3.5L 3.7L
OLDSMOBILE
BRAVADA 1995-2004 4 SP R/4WD V6 4.2L 4.3L
PONTIAC
FIREBIRD 1995-2002 4 SP R/4WD V6 3.8L V8 5.7L
GTO 2004-2006 4 SP RWD V8 5.7L 6.0L
