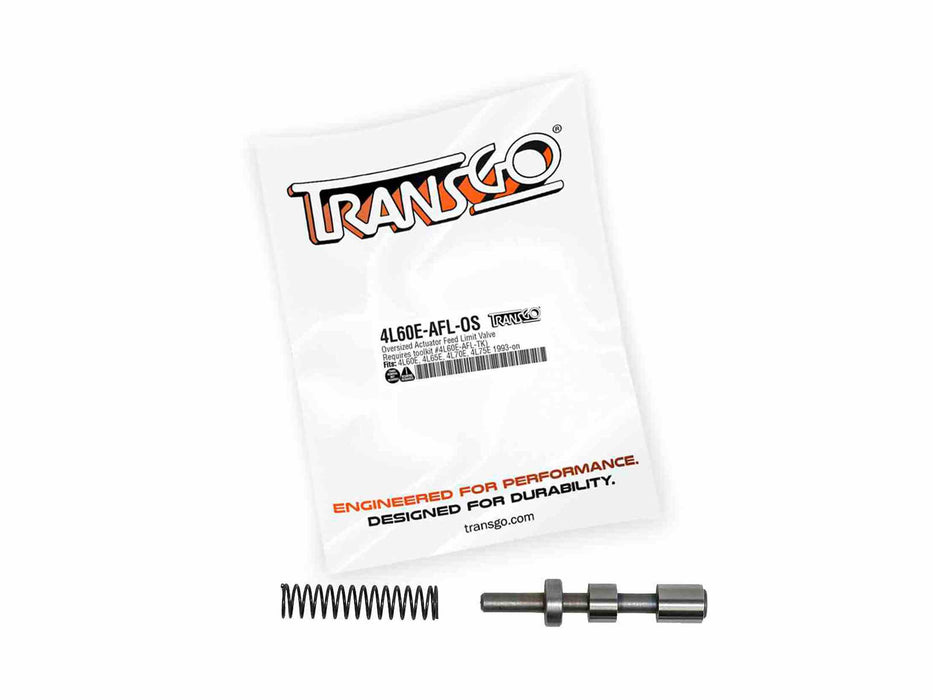

Transgo Oversized Actuator Feed Limit Valve 4L60E 4L65E 4L70E 4L75E

• Restores full hydraulic integrity of the AFL circuit
• Longer valve lands provide increased durability by distributing the load over a larger surface area

Note: Requires reamer and guide (TransGo part # 4L60E-AFL-TK)

• Low line pressure boost
• Erratic line pressure
• Wrong gear starts
• Slips during gear changes
• Clutch plate burn-up
• Neutrals or gear loss at highway speeds

• Oversized USA-made hardened steel actuator feed limit valve
• Spring

Transmissions: 4L75E 2004-2018, 4L70E (M70) 2004-2018, 4L65E (M32) 1993-2018, 4L60E (M33,M30) 1993-2018

BUICK
RAINIER 2003-2007 4 SP R/4WD L6 4.2L V8 5.3L
ROADMASTER SEDAN, ROADMASTER WAGON 1995-1996 4 SP RWD V8 5.7L
CADILLAC
ESCALADE/ESV/EXT 1999-2006 4 SP R/4WD V8 5.3L 5.7L 6.0L
ESCALADE/ESV/EXT 1999-2006 4 SP R/4WD V8 5.3L 5.7L 6.0L
FLEETWOOD, BROUGHAM, LIMO 1995-1996 4 SP RWD V8 5.7L
CHEVROLET
SILVERADO 1998-2013 4 SP R/4WD V6 4.3L V8 4.8L 5.3L V8 6.0L
SUBURBAN 1500 1995-2008 4 SP R/4WD V8 4.8L 5.0L 5.3L 5.7L V8 6.0L
ENVOY, TRAILBLAZER 1999-2009 4 SP R/4WD L6 4.2L V8 5.3L V8 6.0L
ASTRO, BLAZER, CORVETTE, SONOMA, S/T PICK-UP, SAFARI 1995-2005 4 SP RWD V8 5.7L 6.0L
SSR 2003-2006 4 SP RWD V8 5.3L 6.0L
AVALANCHE 2001-2008 4 SP R/4WD V8 5.3L 6.0L 8.1L
C/K, PICK-UP 1500, C/K, PICK-UP 2500, C/K, PICK-UP 3500(95) 1995-1997 4 SP R/4WD V6 4.3L V8 4.8L 5.0L 5.3L 5.7L 6.0L
C-1500 2001-2015 4 SP 4WD V8 5.3L
CAMARO 1995-2002 4 SP RWD V6 3.4L 3.8L V8 5.7L
CANYON 2003-2013 4 SP R/4WD L4 2.8L 2.9L V6 3.5L L5 3.7L V8 5.3L
CAPRICE SEDAN, CAPRICE WAGON, IMPALA 1995-1996 4 SP RWD V8 4.3L 5.7L
COLORADO 2003-2012 4 SP R/4WD L4 2.8L 2.9L L5 3.5L 3.7L V6 3.6L V8 5.3L
EXPRESS 1997-2016 4 SP R/4WD V6 4.3L V8 5.3L
TAHOE 1995-2013 4 SP R/4WD V8 4.8L 5.3L 5.7L
VAN FULL SIZE 1500-2500 1995-2011 4 SP RWD V6 4.3L V8 4.8L 5.0L 5.3L 5.7L 6.5L DIESEL
VAN FULL SIZE 3500 1995-1999 4 SP RWD V6 4.3L
GMC
SIERRA 1500 1998-2013 4 SP R/4WD V6 4.3L V8 4.8L 5.3L V8 6.0L
YUKON , YUKON XL 2000-2011 4 SP R/4WD V8 4.8L 5.3L 6.0L
SAVANA 1997-2016 4 SP R/4WD V6 4.3L V8 4.8L 5.3L
HOLDEN
ADVENTRA 2004-2007 4 SP 4WD V8 5.7L
COMMODORE 2000-2011 4 SP RWD V6 3.6L 3.8L V8 5.7L
MONARO 2001-2006 4 SP RWD V8 5.7L
ISUZU
ASCENDER 2003-2008 4 SP R/4WD L6 4.2L V8 5.3L
HOMBRE 1997-2000 4 SP RWD L4 2.2L V6 4.3L
I SERIES (290, 370) 2006-2008 4 SP R/4WD L4 2.8L 2.9L L5 3.5L 3.7L
OLDSMOBILE
BRAVADA 1995-2004 4 SP R/4WD V6 4.2L 4.3L
PONTIAC
GTO 2004-2006 4 SP RWD V8 5.7L 6.0L
FIREBIRD 1995-2002 4 SP R/4WD V6 3.8L V8 5.7L

Alternate Words: Automatic Transmission, Reprogramming, Improvement , Correction, Shift , Valve Body Rebuild Kit, 4L60EAFLOS
