Sonnax Lube On Demand Valve Kit – Fits GM Gen 3 6T40 Series
In 2014, GM introduced the Generation 3 6T40-series transmissions, which feature a redesigned off-axis, binary vane pump. This new pump design helps reduce torque demand and supports better fuel economy. One major addition is a lube-on-demand regulating valve that boosts cooler/lube flow when converter feed pressure exceeds 87 psi. However, this valve is prone to wear over time, leading to fluid leakage, converter clutch issues, low line pressure, and overheating problems.

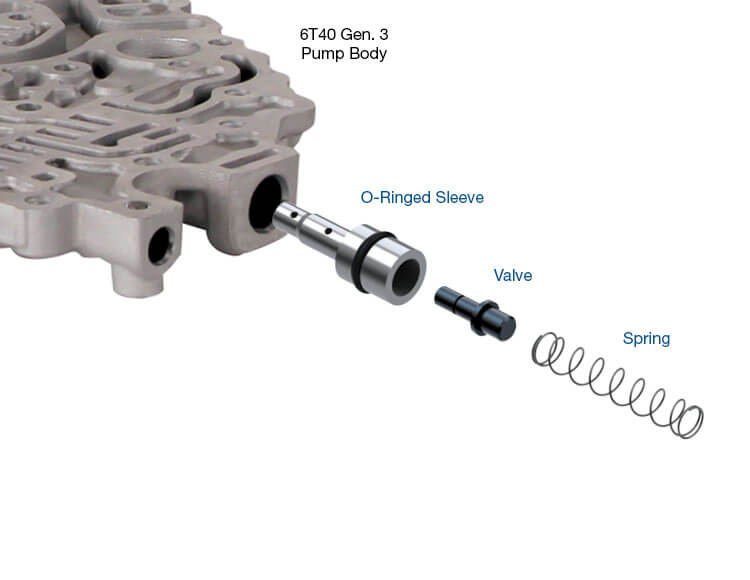

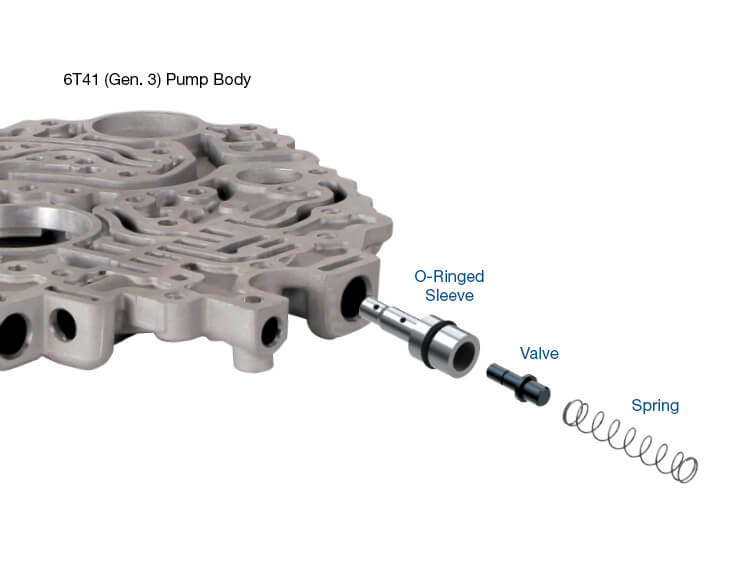

The Sonnax drop-in lube on demand valve kit 144510-19K offers a patent-pending solution that preserves OE functionality while solving the wear issue. It reroutes hydraulic flow through a sleeved limit valve to ensure proper lubrication and cooling, while sealing off the worn bore to prevent converter feed pressure loss. No reaming is required, and all components are engineered for durability and easy installation.
Features:
- Hardcoat anodized valve resists premature wear
- Billet sleeve creates a new, sealed bore surface and prevents future wear
- O-ringed design eliminates leaks without machining
- Drill bit and plugs included for balance oil rerouting
- Fast and simple drop-in installation with no special tools

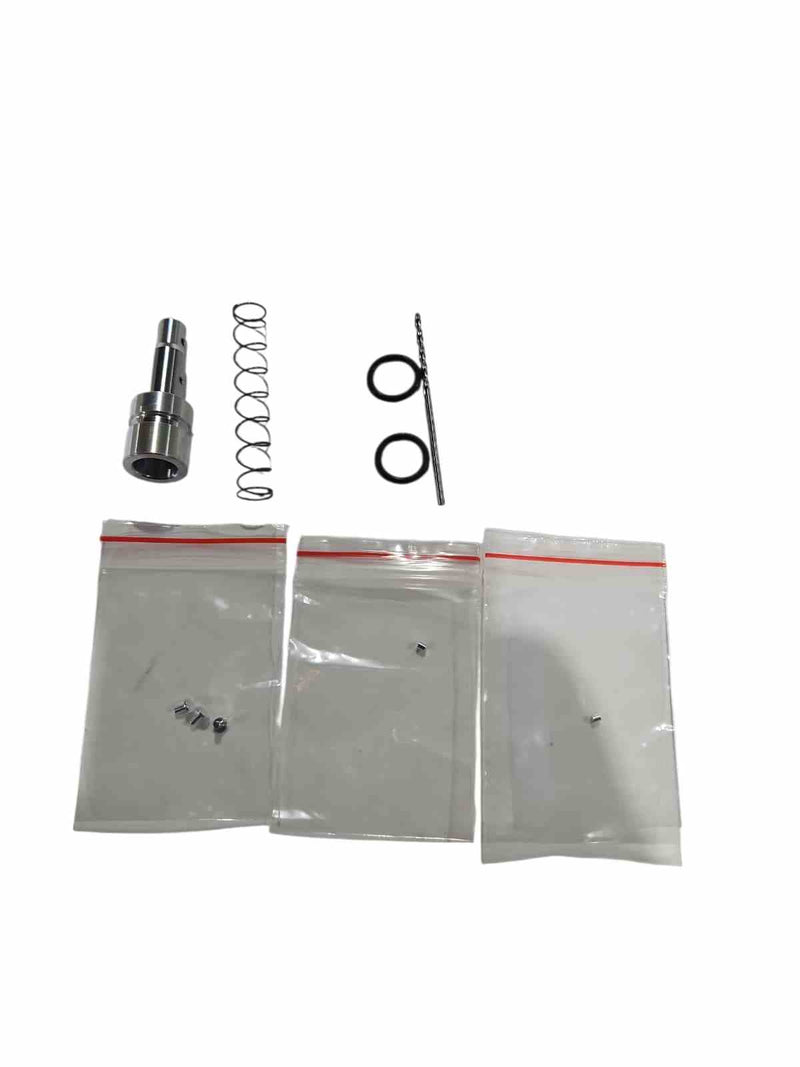

Kit Includes:

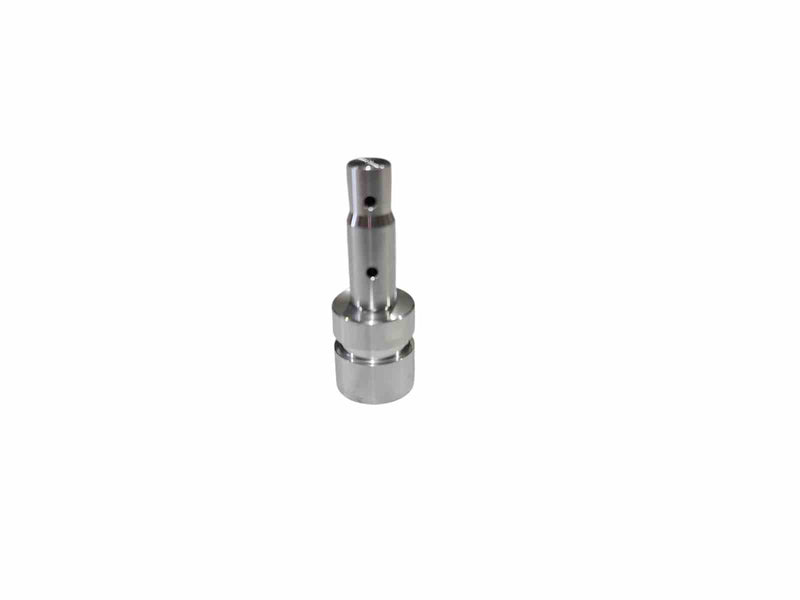

- Valve
- Sleeve

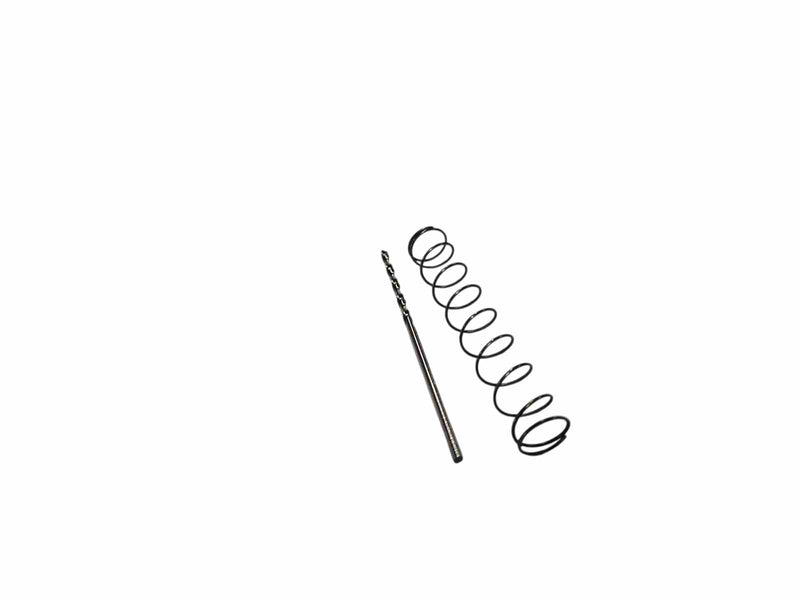

- Spring

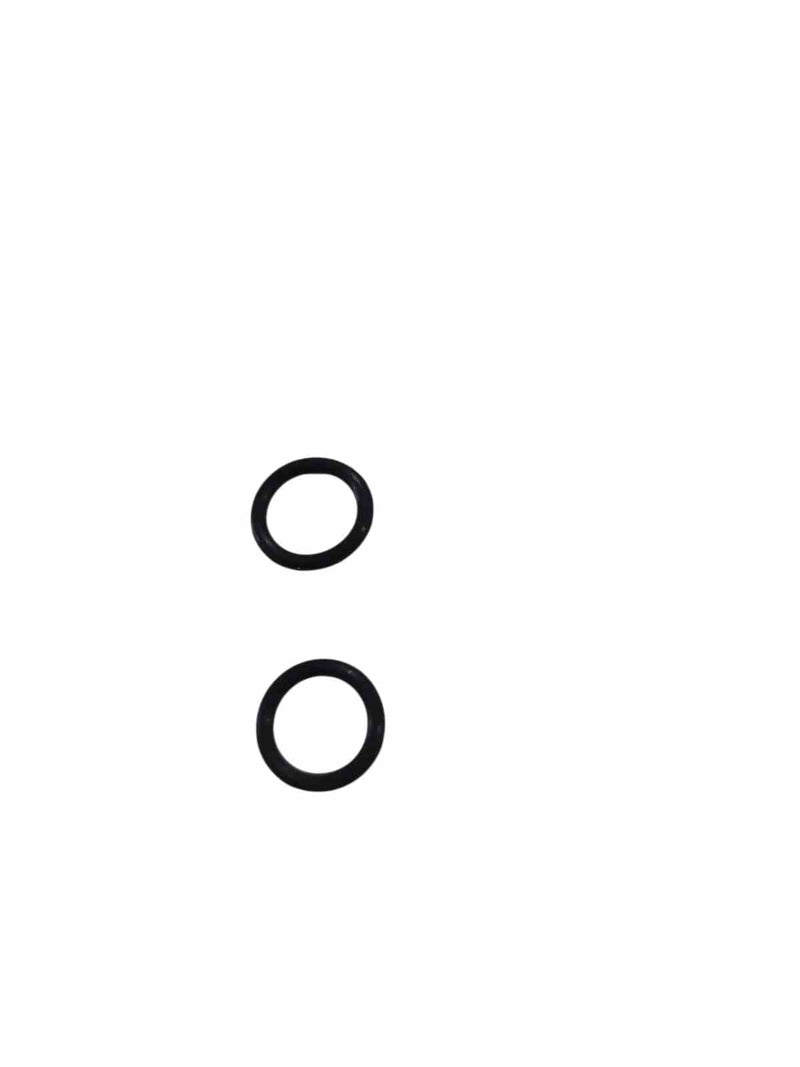

- 2 O-Rings (1 extra)
- Drill Bit (.062") for separator plate (not shown)
- 2 Plugs (1 extra) for separator plate (not shown)
- 2 Rivets (1 extra) for separator plate (not shown)
Note: It is normal for the inner diameter orifice of the Sonnax sleeve to appear blocked by the casting track. The sleeve is undersized to allow fluid to flow through the casting.
Common Symptoms:
- Inadequate cooler flow
- No torque converter apply
- Low line pressure
- Overheated converter
- Transmission overheating
Cause: Continuous movement of the OE lube-on-demand valve leads to wear in the pump bore, allowing fluid to escape and reducing critical pressure.
Correction: Install the Sonnax lube on demand valve kit to restore proper fluid routing and seal worn bores, preventing pressure loss and improving transmission cooling and performance.
Transmissions: 6T51 2014-2019, 6T50 (6T50E) 2012-2014, 6T46 2014-2019, 6T45 (6T45E,MH7) 2012-2014, 6T41 2014-2019, 6T40 (6T40E,X23F) 2012-2014, 6T35 2016-2019, 6T31 2016-2019, 6T30 (MH9) 2013-2018
Vehicle
BUICK
ENVISION 2014-2016 6 SP 4WD L4 2.0L
GL8, REGAL 2012-2016 6 SP FWD L4 2.0L 2.4L V6 3.0L
LACROSSE 2012-2016 6 SP FWD L4 2.0L 2.4L V6 3.0L
VERANO, ENCORE 2012-2016 6 SP FWD L4 2.0L 2.5L V6 3.0L
EXCELLE XT, EXCELLE GT 2012-2016 6 SP FWD L4 2.0L V6 3.0L
CASCADA 2015-2016 6 SP FWD L4 2.5L
ALPHEON 2012-2015 6 SP FWD L4 2.0L 2.4L V6 3.0L
EXCELLE 2013-2016 6 SP FWD L4 1.5L
CHEVROLET
CRUZE, CAPTIVA SPORT, ORLANDO 2012-2016 6 SP F/4WD L4 2.0L 2.2L 2.4L
MALIBU, SPIN, COBALT, ORLANDO, TRAX 2012-2016 6 SP FWD L4 2.0L
CAPTIVA 2012-2016 6 SP F/4WD L4 2.0L 2.2L 2.4L V6 3.0L 3.2L
CRUZE, MALIBU 2012-2016 6 SP F/4WD L4 1.4L 1.6L 2.0L
EQUINOX, TERRAIN, CRUZE 2012-2016 6 SP F/4WD L4 1.5L 2.4L
TRAX, IMPALA, ONIX, PRISMA 2013-2016 6 SP FWD L4 2.5L
MALIBU, ORLANDO, AVEO, SONIC 2012-2016 6 SP FWD L4 1.6L 2.0L V6 3.0L
AVEO 2014-2016 6 SP FWD L4 1.4L
CRUZE 2012-2016 6 SP FWD L4 1.4L 1.6L 1.8L
EPICA 2012-2015 6 SP FWD L4 1.8L
SONIC, SPIN 2013-2015 6 SP FWD L4 1.6L
AVEO, CRUZE, MALIBU, C-HATCH(ENTRY) 2016 6 SP FWD L4 1.4L
LOVA 2012 6 SP FWD L4 1.4L 1.5L 1.6L
DAEWOO
GENTRA 2013-2016 6 SP FWD L4 1.4L 1.6L 2.0L
TOSCA 2012 6 SP FWD L4 2.0L 2.4L L6 2.0L 2.5L 3.0L
HOLDEN
CRUZE 2012-2016 6 SP FWD L4 1.4L 1.6L 1.8L 2.0L
OPEL
INSIGNIA, MERIVA 2012-2016 6 SP F/4WD L4 2.2L 2.4L
MOKKA 2012-2016 6 SP FWD L4 1.4L 1.6L 1.7L 1.8L
ANTARA 2012-2016 6 SP F/4WD L4 2.2L 2.4L
ASTRA 2012-2016 6 SP FWD L4 1.4L 1.6L 1.8L 2.0L
CORSA 2014-2016 6 SP FWD L4 1.4L 1.6L
ZAFIRA TOURER 2012-2015 6 SP FWD L4 1.4L 1.6L 1.8L
CASCADA 2013-2016 6 SP FWD L4 1.4L 1.6L
ROEWE
950 2012-2016 6 SP F/4WD L4 2.0L 2.4L V6 3.0L
SHANGHAI AUTO
R95 2017-2018 6 SPD FWD
WULING
Sunshine V 2018 6 SPD FWD
