TransGo 604 SHIFT KIT® Valve Body Repair Kit for A604, 41TE, A606, 42LE, and 42RLE Transmissions
This TransGo 604 SHIFT KIT® Valve Body Repair Kit is designed for 1989 and newer Chrysler, Plymouth, Dodge, Eagle, Ram, Jeep, and Mitsubishi vehicles equipped with A604/41TE, A606/42LE, and 42RLE automatic transmissions that do not have a variable line pressure solenoid and sensor. For models equipped with a VLP solenoid and sensor, use #SK 42RLE-VLP. Common issues with these transmissions include delayed engagement in forward or reverse, a clunk during 4-3 coast downshifts, and a clunk during 2-1 coast downshifts.
Common Issues Addressed:
- The 4-3 coast clunk is typically caused by a failing underdrive clutch inner piston seal. The TransGo SHIFT KIT® provides a specially engineered tuff seal and expander wire to fix this issue.
- Delayed forward or reverse engagement, along with the 2-1 coast downshift clunk, often occurs due to aging, specifically when the low-reverse piston housing gasket shrinks and starts leaking. This kit includes a specially designed non-shrinking gasket to resolve this problem.
Features and Benefits:
- Includes a non-shrinking low/reverse piston housing gasket, designed to prevent leaks and improve reliability.
- Features TransGo-engineered accumulator piston seals and expander wires for models with aluminum accumulator pistons.
- Comes with a specialized underdrive clutch piston Tuff™ Seal that fits all models, and a pressure regulator spring that updates older valve bodies (1989-1991) to match revised pressure specifications (1992-2006).
- Accumulator spacers are included to speed up the releasing clutch exhaust, resulting in quicker, cleaner shifts.
Corrects/Prevents/Reduces:
- 2-1 coast downshift clunk
- Delayed or no forward or reverse engagement
- Accumulator leaks
- 4-3 coast downshift clunk
- Provides shorter and cleaner shifts

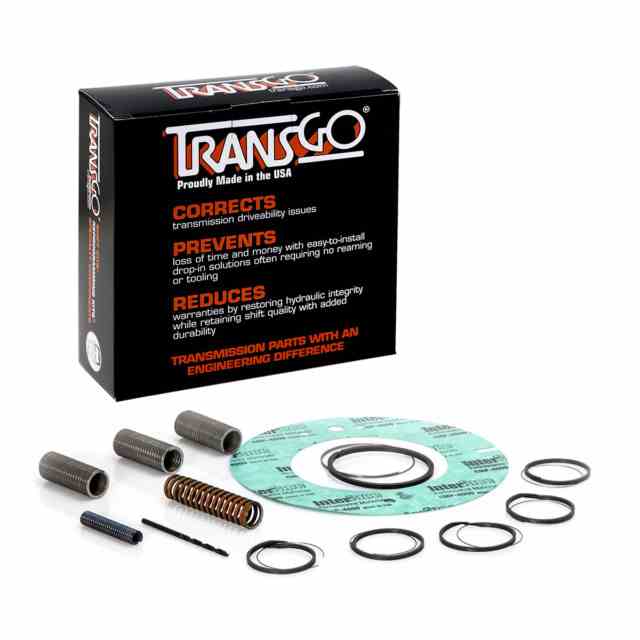

Includes:
- Non-shrinking low/reverse piston housing gasket
- (4) High-temperature accumulator seals and expanders (for aluminum pistons only)
- (3) Large accumulator spacers
- Small accumulator spacer
- Pressure regulator valve spring
- Self-expanding Tuff™ underdrive seal and expander wire
- Drill bit
Note: High-mileage vehicles may sometimes exhibit codes P0841, P0871, P0988, P1775, and P1776 due to wear at the solenoid switch valve bore in the valve body.
Transmissions: 42RLE 1989-UP, A606 (42LE) 1989-UP, A604 (41AE,41TES) 1989-UP
Vehicle
CHRYSLER
300 SERIES 2004-2010 4 SP RWD V6 2.7L 3.5L
300M 1999-2004 4 SP FWD V6 2.7L 3.5L
CONCORDE 1995-2004 4 SP FWD V6 2.7L 3.2L 3.3L 3.5L
LHS 1995-2001 4 SP FWD V6 3.5L
NEW YORKER 1995-1996 4 SP FWD V6 3.5L
PROWLER 2001-2002 4 SP RWD V6 3.5L
200 2006-2014 4 SP FWD L4 2.4L V6 2.7L
CIRRUS 1995-2000 4 SP FWD L4 2.4L V6 2.5L
LEBARON 1995 4 SP FWD V6 3.0L
PACIFICA 2004-2007 4 SP F/4WD V6 3.5L 3.8L
PT CRUISER 2001-2009 4 SP FWD L4 2.0L 2.4L
SEBRING 2000-2010 4 SP FWD L4 2.4L 2.5L V6 2.7L 3.0L
SEBRING CONVERTIBLE 2000-2010 4 SP FWD L4 2.4L 2.5L V6 2.7L 3.0L
TOWN & COUNTRY 1995-2016 4 SP F/4WD V6 3.3L 3.8L
VOYAGER 2001-2011 4 SP FWD L4 2.4L 2.8L V6 3.0L 3.3L 3.8L
DODGE
CHALLENGER 2008-2014 4 SP RWD V6 3.5L
CHARGER 2005-2010 4 SP RWD V6 2.7L 3.5L
DURANGO, MAGNUM 2004-2008 4 SP R/4WD V6 3.7L
NITRO 2007-2011 4 SP R/4WD V6 3.7L
PICKUP/DAKOTA 2003-2011 4 SP R/4WD V6 3.7L
INTREPID 1995-2004 4 SP FWD V6 2.7L 3.2L 3.3L 3.5L
AVENGER 1995-2000 4 SP FWD L4 2.0L V6 2.5L
AVENGER 2007-2014 4 SP FWD L4 2.4L V6 2.7L
CARAVAN 1995-2016 4 SP F/4WD L4 2.4L V6 3.0L 3.3L 3.8L
GRAND CARAVAN 1995-2011 4 SP F/4WD L4 2.4L V6 3.0L 3.3L 3.8L
NEON 2001-2006 4 SP FWD L4 2.0L
STRATUS 1995-2006 4 SP FWD L4 2.0L 2.4L
EAGLE
VISION 1995-1997 4 SP FWD V6 3.3L 3.5L
TALON 1995-1998 4 SP FWD L4 2.0L V6 2.5L NON TURBO
JEEP
CHEROKEE 2000-2016 4 SP R/4WD L4 2.4L 2.5L L6 3.6L 3.7L 4.0L
LIBERTY 2003-2012 4 SP R/4WD L4 2.4L V6 3.7L
WRANGLER 2006-2016 4 SP R/4WD V6 3.8L
WRANGLER UNLIMITED 2006-2016 4 SP R/4WD L4 2.8L V6 3.8L
MITSUBISHI
ENDEAVOR 2003-2010 4 SP R/4WD V6 3.8L
RAIDER 2006-2008 4 SP R/4WD V6 3.7L
ECLIPSE, GALANT 1995-1998 4 SP FWD L4 2.0L
PLYMOUTH
PROWLER 1997-2002 4 SP FWD V6 3.5L
BREEZE, VOYAGER/GRAND VOYAGER 1995-2000 4 SP F/4WD L4 2.0L 2.4L
GRAND VOYAGER 1997-1998 4 SP 4WD V6 3.8L
RAM
1500 2008-2016 4 SP RWD V6 3.7L
Alternate Words: Automatic Transmission, Reprogramming, Improvement , Correction, Shift , Valve Body Rebuild Kit, SK 604
