Sonnax Zip Kit for E4OD and 4R100 Transmissions
The Sonnax Zip Kit E4OD-4R100-ZIP, an evolution of the previously popular Sure Cure® option, now includes additional components to cover later applications. This comprehensive kit is designed for easy installation without the need for reaming or special tools.
Targeting the root causes of multiple transmission issues, the Sonnax Zip Kit E4OD-4R100-ZIP effectively seals critical circuit pressure losses in both the valve body and pump. It features uniquely-designed parts to prevent pressure loss in key areas such as the main line, accumulator control, line pressure modulator, and lockup control circuits. Additionally, the kit addresses various common problems including overdrive planetary and piston failure, forward clutch failure, soft shifts, low clutch apply pressure, unit end play, and lube and bushing failure.
Key Features:
- Installation is straightforward with no reaming or separate special tools required.
- Parts are uniquely designed to seal critical pressure circuits, addressing the root causes of valve body and pump issues.
- A detailed technical booklet is included, offering in-depth rebuild and inspection tips for comprehensive valve body and pump repair.

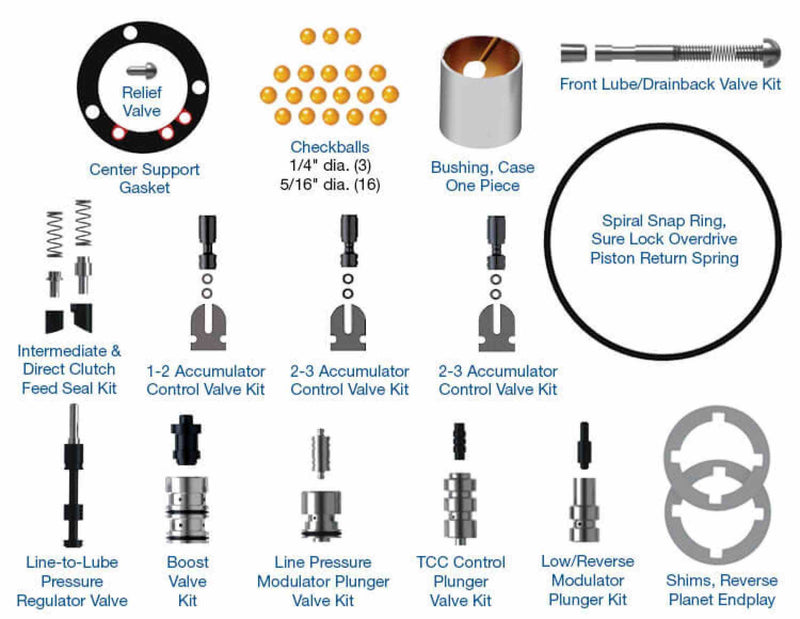

Kit Contents:
- 1-2, 2-3, and 3-4 Accumulator Control Valve Kits
- Boost Valve Kit
- Line Pressure Modulator Plunger Valve Kit
- TCC Control Plunger Valve Kit
- Low/Reverse Modulator Plunger Kit
- Front Lube/Drainback Valve Kit
- Relief Valve
- Center Support Gasket
- Shims (2) for Reverse Planet Endplay
- One Piece Bushing Case
- Line-to-Lube Pressure Regulator Valve Kit
- Checkballs (3) 1/4" dia., (16) 5/16" dia.
- Spiral Snap Ring Sure Lock(TM) Overdrive Piston Return Spring
- Intermediate & Direct Clutch Feed Seal Kit
Note: The Sonnax kit SC-E4OD has been discontinued and replaced by the Sonnax Zip Kit E4OD-4R100-ZIP.
Transmissions: 4R100 1996-UP, E4OD 1989-UP
Vehicle
FORD
ECONOLINE 150, ECONOLINE 250, ECONOLINE 250 SUPER DUTY 2000-2004 4 SP RWD V8 5.4L
ECONOLINE 350 2000-2005 4 SP RWD V8 5.4L 7.3L DIESEL
ECONOLINE 350 SUPER DUTY 2000-2005 4 SP RWD V8 5.4L 7.3L DIESEL
EXCURSION 2000-2005 4 SP R/4WD V8 5.4L 7.3L DIESEL
EXPEDITION 2000-2002 4 SP R/4WD V8 5.4L
F-150 /F-250 2000-2007 4 SP R/4WD V8 5.4L 7.3L DIESEL V10 6.8L
F-350/350 SUPER DUTY 1999-2004 4 SP R/4WD V8 5.4L 7.3L DIESEL V10 6.8L
F-450/550 SUPER DUTY 2000-2004 4 SP R/4WD V8 7.3L DIESEL V10 6.8L
BRONCO 1995-1996 4 SP R/4WD V8 5.0L 5.8L
ECONOLINE 150, ECONOLINE 250, ECONOLINE 250 SUPER DUTY, ECONOLINE 350, ECONOLINE 350 SUPER DUTY, F-150, F-250, F-350/350 SUPER DUTY 1995-1997 4 SP RWD L6 4.9L V8 5.4L 5.8L
EXPEDITION 1996-1997 4 SP R/4WD V8 5.4L
F-450 SUPER DUTY 1995-1998 4 SP R/4WD V8 7.5L 7.3L DIESEL
Alternate Words: Automatic Transmission, Reprogramming, Improvement , Correction, Shift , Valve Body Rebuild Kit, E4OD-4R100-ZIP, E4OD4R100ZIP
