68RFE Low Line Pressure (P0868): Check The Filters And The Pump Inlet Seal First

Quick Answer

• What Fails: the pump draws fluid through the sump filter and a seal in the pump inlet bore. A cracked filter, a seal that is not flush, or a new seal stacked on an old one lets the pump draw air. A loose spin-on filter drops the level until the pump does the same.
• What It Triggers: P0868, P0944, slip and flare on upshifts under load, delayed engagement, and limp mode locked in 4th gear.
• Specs: sump filter screw 40 in-lb (4.5 N·m); spin-on filter 84 in-lb (9.5 N·m); pan bolts 105 in-lb (12 N·m).
• The Fix: seat the seal in the pump bore first, then the filter. Never put the seal on the filter neck. Torque the spin-on with a wrench. Set the fluid level hot.

Your Ram 2500 or 3500 tows fine one week. The next, it flares on upshifts, slips on a grade or drops into limp mode with a low line pressure code.

Before you start replacing parts, rule out the supply side: the two filters, the pump inlet seal and the fluid level. It takes minutes and a filter kit. Chrysler's own cause list for P0944 starts there: fluid level, a cracked or badly installed primary filter or seal, a loose cooler return filter. The regulator valve and the pump come after.

Filter hardware is not the only cause of 68RFE low line pressure. The other causes are below. It is the one you rule out first.

What Line Pressure Does Inside A 68RFE

The 68RFE is the six-speed introduced in 2007.5 behind the 6.7L Cummins in Ram 2500 and 3500 pickups. The pump makes flow, the pressure regulator valve sets line pressure, and the TCM trims it through the duty cycle of the pressure control solenoid. A 5% duty cycle is maximum pressure; 62% is minimum.

Stock numbers: about 60–70 psi in Drive at idle at a 22–24% duty cycle, and about 160 psi under heavy load. During shifts and in Park and Neutral the TCM holds a preset 120 or 135 psi, so a high Park reading is normal. Desired values well above these usually mean the truck is tuned.

When line pressure falls short, the clutch plates slip instead of clamping. Slip makes heat, heat burns the friction material and cooks the ATF. Behind a high-torque diesel, that is how a seal that costs a few dollars becomes a burned clutch pack and a full overhaul.

How The TCM Monitors Line Pressure

The TCM compares desired line pressure (what it commands) with actual line pressure. Actual comes from the line pressure sensor on the right rear of the case. In a healthy unit the two track within a few psi.

• The sensor signal must stay between 0.35 V and 4.75 V. Outside that window for 0.18 seconds, the TCM sets P0934 (circuit low) or P0935 (circuit high).
• If actual falls more than 15 psi below desired for 3.5 seconds in a forward gear, the TCM sets P0868.

That is why a pump drawing air looks like an electronic failure on the scan tool. The gauge tells you what the sensor cannot.

Vehicle Compatibility

The Weak Point: The Filter Side Of The Pump

The 68RFE has two filters. Each has a sealing point where air or fluid gets past.

The classic comeback on this unit: the truck leaves the bay after a fluid service and is back a few days later with low pressure codes. The pump inlet seal was not seated flush, or a new seal went in on top of the old one. The filter sits crooked and the pump pulls air.

Air in ATF compresses; liquid ATF does not. Aerated fluid cannot hold the 160 psi the TCM commands under load, no matter how hard the pump works.

The spin-on sits after the pump, on the cooler return side. A loose spin-on does not feed the pump air directly. It leaks, the level drops, and the pump starts pulling air from the pan. Chrysler lists a loose cooler return filter as a direct cause of P0944.

The adapter the spin-on threads onto is plastic. Over-tighten it and the threads crack. Leave it short of 84 in-lb and heat cycles work it loose. Torque wrench, not a hand-tight guess.

Warning Signs Of 68RFE Low Line Pressure

Filter-related pressure loss starts intermittently and gets worse as the fluid heats up. Several of these together point at the filter side before any electronic part:

• Flare or slip on upshifts under load, towing or climbing a grade.
• Delayed engagement into Drive or Reverse after the truck sits overnight.
• Pump whine or buzz that changes pitch with engine RPM: cavitation.
• ATF on the spin-on filter body or dripping onto the crossmember.
• Foamy, aerated, dark or burnt-smelling ATF on the dipstick.
• Limp mode: the transmission holds 4th gear in every forward range, check engine light on.

Codes Linked To 68RFE Pressure Loss

Do not replace the line pressure sensor because P0868 appeared. If air or a low level is the cause, a new sensor reports the same low pressure. The code comes back.

The reverse holds too. P0933 or a circuit code next to P0868 means start at the sensor connector, not the pan. The factory chart has you push the connector toward the case while watching the reading.

How To Confirm A Filter Problem: Step-By-Step Diagnosis

Least invasive first.

1. Check fluid level and condition. Drive until the transmission reads 170–180 °F (77–82 °C) on the cluster, about 15 miles. Park on level ground and idle for 60 seconds. Set the parking brake, hold the brake, move the selector through each range and end in Park. Read the dipstick: the level belongs between the HOT holes. Foam or bubbles mean air at the pump. An overfill aerates the fluid the same way and sets P0868 just as well.
2. Inspect the spin-on filter. Look and feel for ATF at its base, then try to turn it by hand. If it moves, it is loose or the adapter has cracked.
3. Read live data. Graph desired pressure, actual pressure and line pressure duty cycle together.
   • Stock, Drive at idle: 60–70 psi desired and actual, 22–24% duty cycle.
   • Duty cycle pinned at 5% with actual below desired: the TCM is already asking for maximum and the hydraulics cannot deliver. Supply problem.
   • Actual jumping around erratically: the pump is drawing air at the filter-to-pump seal.
   • Actual below desired cold, matching warm: a defective or substandard sump filter.
   • Matching cold, sagging at idle once warm, recovering with throttle: a worn pump, not a filter.

4. Confirm with a gauge. Tee a 0–300 psi gauge in through the factory line pressure adapter (Miller 8259 or equivalent). Gauge and scan tool more than 5 psi apart: the sensor is suspect. Both low: the problem is hydraulic.
5. Drop the pan. Check the sump filter body for cracks. Look into the pump bore: one seal, flush, or two? Read the pan magnet for clutch material or metal.
6. Filters check out? Move to the other causes below.

How To Install The 68RFE Sump And Spin-On Filters Correctly

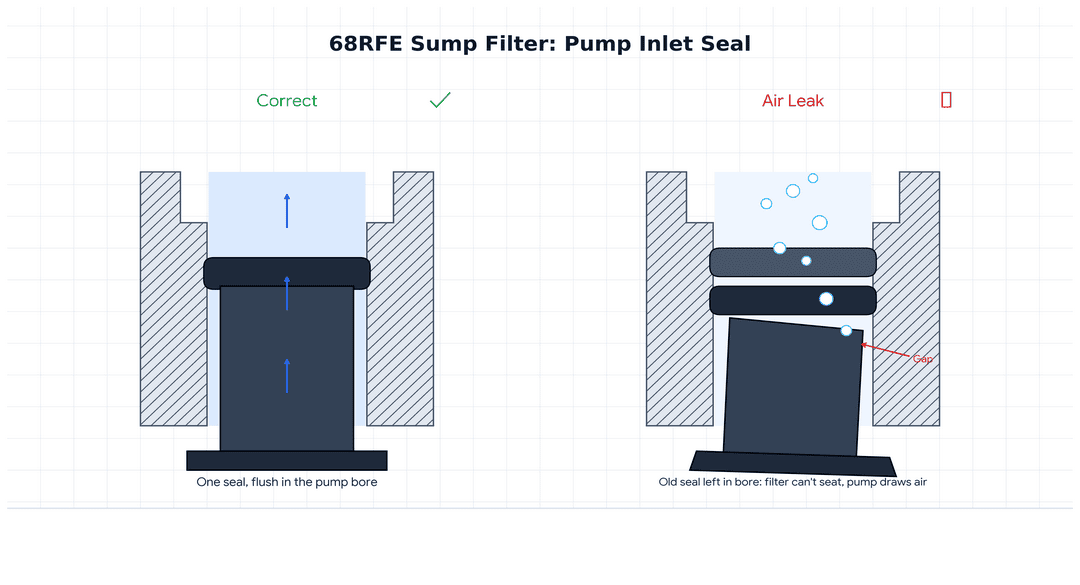

From our bench: the most common reassembly mistake on this unit is a double seal at the pump inlet. The old seal stays stuck in the bore when you pull the filter. The new filter goes in with a new seal on top of it, and it never seats. Look before you install.

1. Remove the old sump filter. T25 Torx retaining screw, then lower the filter.
2. Inspect the pump inlet bore. A seal that is not fully installed or is damaged comes out and gets discarded. Use a plastic or brass pick so you do not scratch the aluminum. A seal that is flush and undamaged can stay.
3. Install the new seal in the pump bore first. Press it in flush against the pump body. Do not fit the seal onto the filter neck and push both in as an assembly. The factory procedure says damage to the transmission will result.
4. Install the new sump filter. Into the pump, onto the valve body, retaining screw to 40 in-lb (4.5 N·m).
5. Install the spin-on filter. Clean ATF on the gasket, torque to 84 in-lb (9.5 N·m). Plastic adapter: no impact tools, no "quarter turn more".
6. Install the pan. Clean both surfaces. The factory seals the pan with Mopar RTV. A reusable Farpak-style gasket is the usual service replacement, and it ships in our 68RFE filter and gasket kit. Bolts to 105 in-lb (12 N·m), crisscross.
7. Fill and check. ATF+4, wait two minutes for it to drain into the sump, then set the level hot as in step 1 above.

Let the transmission cool before you drain it. Keep the truck on jack stands, never on a jack alone.

Other Causes Of 68RFE Low Line Pressure

If the filters, seal and level all check out:

• Line pressure sensor or its connector. The crimp and solder at the sensor terminals fail often. Tug the wires before you condemn the sensor.
• Pressure regulator bore wear in the valve body. The closer the duty cycle sits to 5% at normal pressure, the more the worn bores leak. Vacuum-test them before you choose between a repair kit and a replacement. The method is in our valve body vacuum testing guide.
• Worn oil pump. Matches cold, sags at idle warm.
• Tuning or oversized tires that command more pressure than the pump can make. Duty cycle at 5%, actual below desired, often with a 225 psi command in 6th. ATRA's 68RFE data puts most repeat failures of this unit down to pressure management.

For the code itself across every make, see our guide to P0868, transmission fluid pressure low.

Frequently Asked Questions About 68RFE Low Line Pressure

Can A Loose Transmission Filter Really Cause Low Line Pressure?

Yes. A loose spin-on leaks and lowers the level until the pump draws air. A cracked or poorly seated sump filter lets the pump draw air directly. Either way the fluid aerates and the clutches slip under load. Chrysler lists both on its P0944 cause list.

What Is The Torque Spec For The 68RFE Spin-On Filter?

84 in-lb (9.5 N·m). The sump filter screw is 40 in-lb (4.5 N·m) and the pan bolts are 105 in-lb (12 N·m). Use a torque wrench on the spin-on: the factory adapter is plastic.

Will A New Line Pressure Sensor Fix P0868 On A 68RFE?

Not when the cause is a loose filter or air at the pump inlet. A new sensor reports the same low pressure and the code returns. Check level, filter seating and actual pressure with a gauge first.

Is P0933 A Low Line Pressure Code On The 68RFE?

No. P0933 sets when actual line pressure reads more than 25 psi above desired. It points at the sensor, its connector or the pressure control circuit. With P0868 beside it, start at the sensor connector, not the filters.

Will A 68RFE Shift Kit Fix Low Line Pressure?

Not a supply problem. If the pump is drawing air, no valve body kit helps. If the regulator bore is worn and the duty cycle lives near 5%, a TransGo SK45RFE-A restores regulation and firms the shifts. Fix the supply side first.

Can I Keep Driving A 68RFE In Limp Mode?

Only to a shop. Limp mode holds 4th gear to protect the unit. Reset: stop, Park, ignition off, wait 10 seconds, restart. If it comes back, diagnose before you tow.

68RFE Filter Parts And Support From Sun Transmissions

Most filter-related pressure failures in the 68RFE start with a seal or a filter that costs less than a tank of diesel. Fix that root cause instead of swapping sensors, and the clutch packs, converter and valve body stay out of the heat.

Diagnose first. Then source the right parts. We stock the 68RFE sump filter, the OEM and aftermarket spin-on filter and the filter and Farpak gasket kit. We also carry the line pressure sensor and TransGo and Sonnax valve body parts. We ship from Miami to the whole USA, Latin America and the Caribbean.

Not sure which part fits your unit? Call +1 786 360 1516 or reach us on WhatsApp with the year and the OEM number on the old filter.
