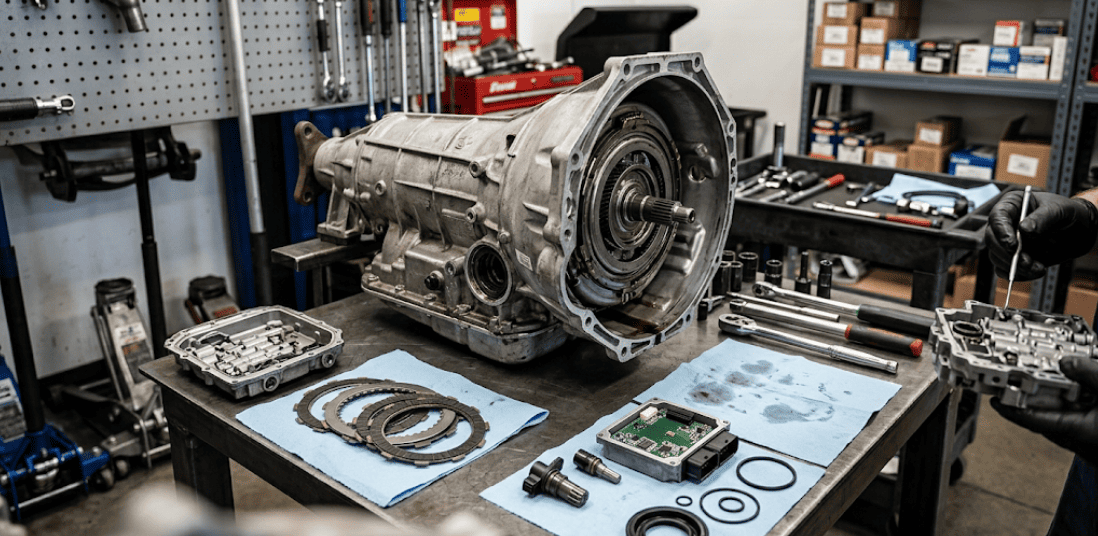

The Ultimate 6L80 Transmission Guide: Common Failures, Diagnosis, and Rebuild Solutions

The GM 6L80 transmission (and its heavy-duty sibling, the 6L90) is a sophisticated powerhouse found in iconic vehicles like the Chevrolet Silverado, GMC Sierra, and Cadillac Escalade. However, its complexity is also its downfall. For a shop or a vehicle owner, a standard rebuild is often not enough; you must address the inherent design flaws to ensure the unit doesn't end up back on the bench.

Here is everything you need to know for a successful, long-lasting 6L80 repair.

1. Advanced Diagnosis: Beyond the Symptoms

A successful repair starts with an accurate diagnosis. Before dropping the transmission, pay attention to these specific behaviors:

• The "Rumble Strip" Shudder: If you feel like you are driving over grooved pavement between 40-60 mph, the TCC (Torque Converter Clutch) is slipping. Ignoring the P0741 code allows debris to destroy the entire hydraulic system.

• Flare on 2-3 or 4-5 Shifts: This indicates a critical pressure loss. If RPMs spike momentarily during a shift, your clutch packs are burning up.

• Hard Engagement or Loss of Reverse: This is often the first sign of a hairline crack in the 3-5-R Clutch Drum. Even if it still moves, a delay of more than 2 seconds when shifting into reverse is a major red flag.

2. The "Big Three" Failure Points & Professional Solutions

A. The Torque Converter: The Achilles' Heel

The most documented failure is the disintegration of the TCC friction material. This debris clogs valves and damages the TEHCM.

• The Solution: During a rebuild, it is mandatory to replace the converter with a Heavy-Duty or Billet Cover unit. Simply flushing the system is not enough; you must fix the original TCC design flaw.

B. The TEHCM (The Electronic Brain)

The 6L80 uses a TEHCM, which combines automatic transmission solenoids and the control module into one internal part submerged in hot oil. It is highly sensitive to heat and metal debris.

• The Solution: If you see codes P0700 or P2714, replacement is usually the only reliable path. At Sun Transmissions, we provide pre-programmed TEHCM modules to make your installation "plug and play."

C. 3-5-Reverse Clutch Drum Fatigue

The factory drum is notorious for cracking at the weld points under mechanical stress, leading to a loss of Reverse, 3rd, and 5th gears (Code P0776).

• The Upgrade: Do not replace it with a standard OEM drum. Use a reinforced drum designed to handle higher oil flow and internal pressures without flexing or cracking.

3. Thermal Management: The Silent Killer

Heat is the #1 enemy of the 6L80. The factory thermostat doesn't fully open until 190°F (88°C), which prematurely degrades the fluid.

• Expert Solution: Install a Thermal Bypass Kit. This allows fluid to circulate through the external cooler from the moment you start the engine, keeping temps between 160°F and 175°F, which can easily double the transmission's lifespan.

4. Fluid Specs & Rebuild Requirements

To make your 6L80 "bulletproof," follow these strict requirements:

1. Correct Fluid: Use DEXRON®-VI Synthetic only. Multi-vehicle non-synthetic fluids will lead to TCC chatter and solenoid sticking.

2. New Filter: Never reuse a filter. Microscopic metal particles will bypass a used filter and destroy your new TEHCM in minutes.

3. Pro Transmission Rebuild Kit: Your kit should include high-energy frictions, a Pump Upgrade Kit to fix pressure drops, and updated pistons (especially the 1-2-3-4 piston).
