Transmission Clutch Pack Clearance Specs by Family: 4L60E, 6R80, 46RE–48RE

If you rebuild automatic transmissions, clutch pack clearance is the number that decides how the job ends. Either the unit stays on the road for years, or it comes back on a hook. The problem is that the correct clearance is not one number. A 4L60E 3-4 pack, a Ford 6R80 direct clutch, and a 48RE front clutch all live in different factory windows. Guessing from a remembered rule of thumb is how a fresh rebuild ends up slipping under load or cooking its own fluid.

This guide puts the verified clearance specifications for the most common families in one table, then walks through how to measure and adjust the gap. For the full teardown-and-measure procedure on GM units, see our companion guide to measuring clutch wear in a 4L60E.

Why Clutch Pack Clearance Decides Whether a Rebuild Lasts

When hydraulic pressure is applied to the piston, the friction plates and steel plates compress to transfer engine torque. The air gap remaining in the stack when the piston is fully retracted is your clutch pack clearance — and the factory windows are narrow on purpose.

Too tight, and ATF cannot establish a cooling film between the plate surfaces. Parasitic drag pushes temperatures past 300°F, glazing the friction compound and warping the steels. Too loose, and the piston travels farther than designed. Apply pressure drops for a moment and engagement goes soft — that is apply loss — and the flare shifts that follow shear the fluid and burn the pack. Both failures end the same way: a comeback.

Modern electronically controlled units with direct solenoid pressure control run tighter tolerances still; enough extra travel will log "Incorrect Gear Ratio" DTCs before the pack even burns.

Clutch Pack Clearance Specifications by Transmission Family

The traditional rule of thumb is 0.008" to 0.010" of clearance per friction plate. It is a starting point, not a spec. Always verify against the service data for the unit and year in front of you — these are the verified windows for the high-volume families:

GM 4L60E / 4L65E: The 3-4 pack is the known weak point, and steel-plate thickness varies by drum type (0.107" one-piece apply plate builds vs 0.070" three-piece). Measure against the year-specific spec — our 4L60E clutch wear guide covers the full procedure. When the stack is out of spec, the Raybestos Z Pak 3-4 friction and steel pack is the matched-module fix. Everything else for the unit lives in the 4L60E / TH700-R4 parts collection.

Ford 6R60 / 6R80 / 6R100: Yes, the 6R100 is real — it is the TorqShift-G behind the 2017–2022 F-250 6.2L gas engine, sitting between the 6R80 and the heavy 6R140. The family runs five clutch packs (A through E), each with its own clearance window, so identify the clutch before you reach for the feeler gauge. Parts for the family are in our 6R60 / 6R75 / 6R80 / ZF6HP26 collection.

Chrysler 46RE / 47RE / 48RE: The front (direct) clutch spec depends on the drum: 4-clutch drums run 0.070"–0.129", the 48RE 5-clutch drum runs 0.098"–0.161". Both are measured between the waved snap ring and the pressure plate. That generous window is deliberate; it reduces rotating drag in first and second gear. Do not "improve" it to a tighter number. Our A518 / 46RE / 47RE / 48RE collection covers the family.

Measuring Tools: Feeler Gauge vs. Dial Indicator

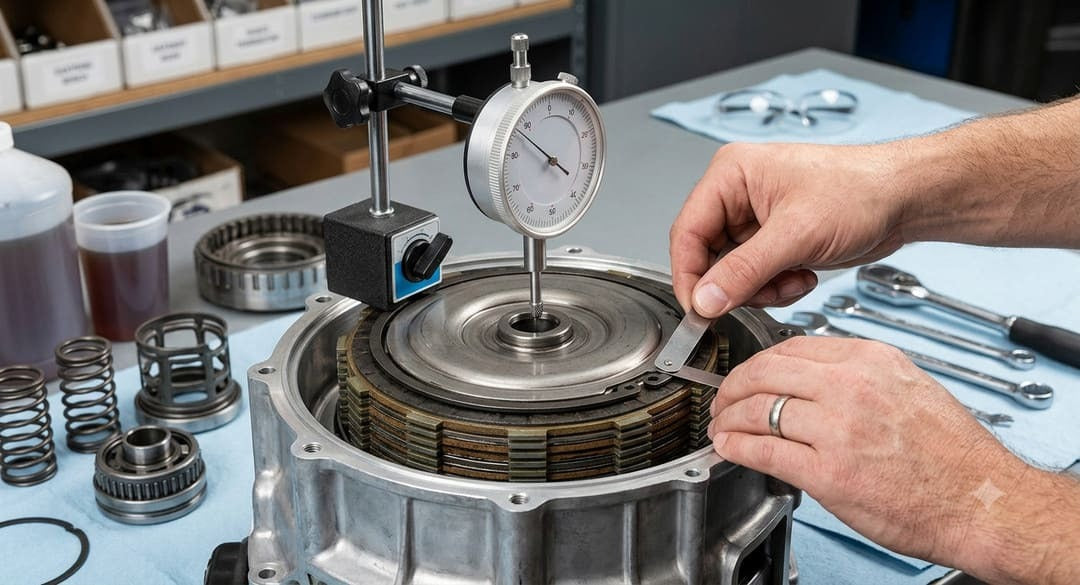

Measure clearance with calibrated tools, not visual estimation.

Step-by-Step: Measuring and Adjusting Clutch Pack Clearance

Run these in order. Skipping the prep is how you get a reading you cannot trust.

1. Pre-soak plates and purge air. If installing new friction plates, soak them in clean ATF for at least 30 minutes before assembly. Dry plates absorb fluid after installation and can shift your final clearance reading by up to 0.005". Compress the pack by hand inside the drum to expel trapped air.

2. Apply regulated air and log piston travel. Secure the dial indicator's magnetic base to the housing and set the plunger on the top pressure plate. Feed regulated shop air into the piston apply port — 25 to 40 PSI depending on the procedure. Stay at the low end on a freshly sealed drum so you do not roll a new lip seal. Record total indicator travel as the piston compresses the pack.

3. Record readings at 3 points, 120° apart. Measure around the retaining snap ring and average. A variance greater than 0.005" between points means the pressure plate or wavy plate is warped — replace it, do not measure around it.

4. Adjust with selective steels or snap rings. To decrease clearance, swap in thicker selective steel plates or a thicker selective snap ring. To increase it, fit thinner steels — or remove the cushion/wavy plate in approved competition applications only. If the frictions themselves are worn, replace the pack as a matched set from our friction modules collection rather than stacking extra steel to hide the wear.

Troubleshooting Clearance Measurement Issues

If the air test will not give a stable reading, check these before condemning parts:

• Piston fails to return to rest: weak or broken return springs, or a twisted/rolled piston lip seal.
• Air hiss at the feed port with no indicator travel: pressure leaking past the drum shaft sealing rings (teflon or cast iron), or a hairline crack in the drum.
• Stack binds during snap ring installation: the bottom pressure plate is riding on the return spring cage instead of sitting flush on the piston ledge.
• Clearance is right but shifts are still wrong after assembly: the leak may be in the valve body, not the drum. A Sonnax vacuum test stand will find worn valve bores that bleed off apply pressure downstream of a perfectly built clutch pack.

Frequently Asked Questions

What is the correct clutch pack clearance for an automatic transmission?

There is no universal number. The shop rule of thumb is 0.008"–0.010" per friction plate, but every family has its own factory window — 0.035"–0.083" for a 4L60E 3-4 pack versus 0.098"–0.161" for a 48RE front clutch. Use the table above as your starting point and verify against year-specific service data.

How do you measure clutch pack clearance with a feeler gauge?

With the pack assembled and the snap ring seated, apply light, even pressure to the backing plate. Slide the feeler gauge between the snap ring and the pressure plate — or the top friction, depending on the unit's spec point. Measure at three points around the drum and average them — a single reading can hide a warped plate.

What is the 3-4 clutch pack clearance on a 4L60E?

GM's factory travel spec is 0.035"–0.083", and experienced builders target 0.050"–0.070" for a crisp 2-3 shift. The full measuring procedure, service limits, and replacement guidance are in our 4L60E clutch wear guide.

What happens if clutch pack clearance is too tight or too loose?

Too tight, the pack drags: constant friction contact overheats the fluid, glazes the friction material, and warps the steels. Too loose, the apply goes soft: extra piston travel drops apply pressure, engagement is delayed, and the resulting flare shifts burn the pack. Both directions end in slip and a comeback.

Do I have to replace the whole clutch pack if the clearance is out of spec?

Usually, yes — if the frictions are worn. Adding an extra steel plate to close up a loose stack changes the apply geometry and hides the real problem. Replace the frictions and steels as a matched set, then fine-tune the final clearance with a selective backing plate or snap ring. It is far cheaper than the second rebuild.
